Introducing virtual package in MoonBit

Β· 4 min read

cover

MoonBit recently introduced a new feature: virtual package. By declaring a package as a virtual package and defining a set of interfaces (via .mbti files), users can choose which implementation to use. If no implementation is specified, the default implementation of the virtual package is used. This feature provides significant flexibility in separating interfaces from implementations. Note: This feature is currently in an experimental state.

Usage​

Taking the virtual_pkg_demo as an example, the project structure is as follows:

.
β”œβ”€β”€ virtual // Declared as a virtual package, with virtual.mbti defining a set of interfaces
β”œβ”€β”€ impl    // Provides a custom implementation for the interfaces in the virtual package
β”œβ”€β”€ lib     // Depends on the interfaces in the virtual package
└── main    // Depends on the lib package, overrides the virtual package's default implementation with the impl package

  • Declaring a Virtual Package: In the moon.pkg.json file of the virtual package, use the following field to declare it as a virtual package. The package must include a .mbti file, or an error will be reported. If "has-default" is set to true, the compiled artifacts of the default implementation will be built and linked when the package is not overridden.

    "virtual": {
        "has-default": true
    }

  • Providing a Custom Implementation for a Virtual Package: In the moon.pkg.json file of the impl package, set the "implement" field to the full package name of the virtual package. The implementation must fully satisfy the interfaces defined in the .mbti file of the virtual package.

    "implement": "username/hello/virtual"

  • Using a Virtual Package: In the moon.pkg.json file of thelib package, add the virtual package in the "import" field.

  • Overriding a Virtual Package: In the moon.pkg.json file of the main package, specify the implementation package in the "overrides" field. If no implementation is specified and the virtual package has a default implementation, the default is used. If there is no default implementation, an error is reported.

    {
      "is-main": true,
      "import": [
        "username/hello/lib"
      ],
      "overrides": [
        "username/hello/impl"
      ]
    }

Specific Example​

The following example illustrates the use of virtual packages in moonbitlang/core. The moonbitlang/core/abort package is defined as a virtual package. The relevant code is as follows:

  • abort.mbti: Declares the APIs exposed by this package.

    package "moonbitlang/core/abort"

    // Values
    fn abort[T](String) -> T

    // Types and methods

    // Type aliases

    // Traits

  • abort.mbt: Provides the default implementation for the fn abort[T](String) -> T API.

    pub fn abort[T](msg : String) -> T {
      let _ = msg
      panic_impl()
    }

    ///|
    fn panic_impl[T]() -> T = "%panic"

In the current default implementation, the msg parameter is intentionally ignored. This is because using println(msg) would make the generated .wasm file depend on the spectest::print_char function defined in the moonrun runtime. If a WebAssembly runtime other than moonrun (e.g., Wasmtime, Wasmer) is used, it would result in an error:

error: Unable to instantiate the WebAssembly module
╰─▢ 1: Error while importing "spectest"."print_char": unknown import. Expected Function(FunctionType { params: [I32], results: [] })

Customizing the Implementation of moonbitlang/core/abort​

The abort(msg) interface is used in many built-in data structures. When certain invariants are not met, it causes a runtime failure. However, with the current default implementation, the msg in abort is not output, making it difficult for users to identify the cause of the error. To address this, we can provide a custom implementation of abort that prints the msg (provided you are not using a WebAssembly runtime other than moonrun). The steps are as follows: First, run moon add moonbitlang/dummy_abort, then add the following field to moon.pkg.json:

"overrides": [
    // This package provides a custom implementation for the moonbitlang/core/abort virtual package
    "moonbitlang/dummy_abort/abort_show_msg"
]

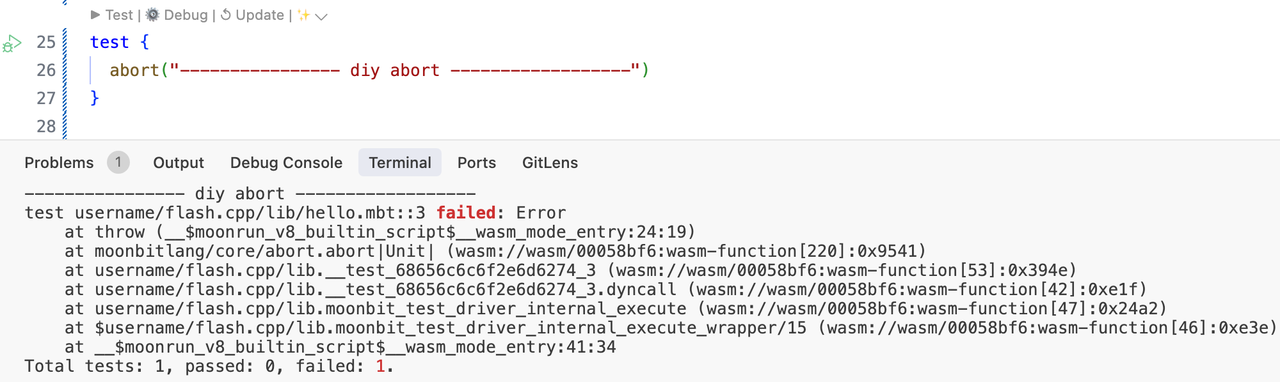

Testing the behavior of abort now shows that the passed parameter is indeed printed.

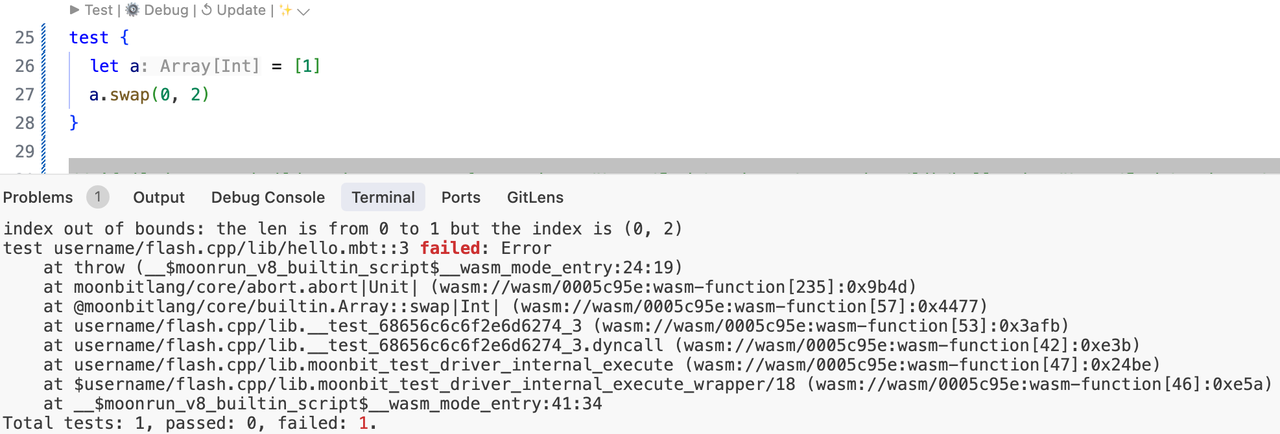

Intentionally misusing swapon an array results in the following error message:

In the future, the MoonBit community plans to provide libraries compliant with the WASI standard to implement println. This will allow compiled .wasm files to run on WebAssembly runtimes that support this standard. Stay tuned!
