Mini-adapton: incremental computation in MoonBit

· 10 min read

Introduction​

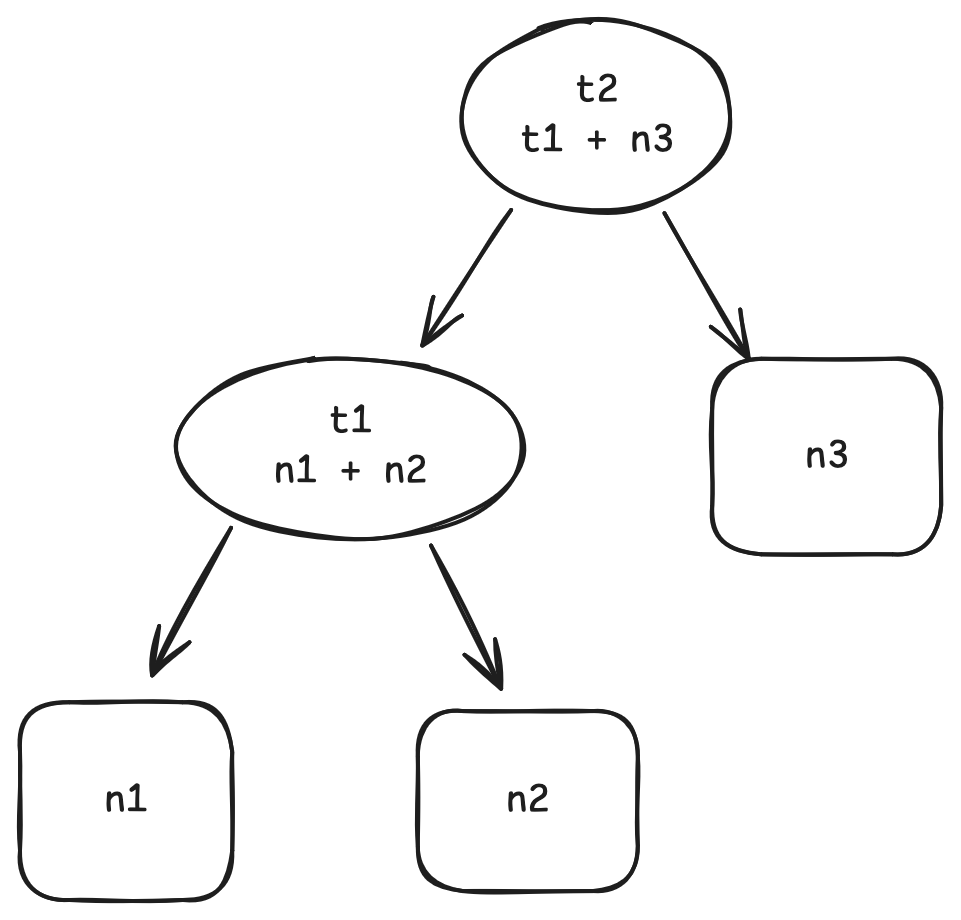

Let's first illustrate how incremental computation looks like with an example similar to spreadsheet. First define a dependency graph like this:

In this graph, t1's value is computed from n1 + n2 and t2's value is computed from t1 + n3.

When we want to get the value of t2, the computation defined in the graph will be done: first t1 is computed by n1 + n2, then t2 is computed by t1 + n3. This process is the same as non-incremental computation.

However, when we start to change values in n1, n2, or n3, things get different. Say we swap the value of n1 and n2, then get t2's value. In non-incremental computation, both t1 and t2 will be recomputed. But the computation of t2 is actually not needed, since all its dependency t1 and n3 are not changed (swap n1 and n2 wont change t1's value).

The following code example does exactly what we describe above. We use Cell::new to define n1, n2, and n3, which does not need computation. And Thunk::new to define t1 and t2 with computation.

test {
  // a counter to record the times of t2's computation
  let mut cnt = 0
  // start define the graph
  let n1 = Cell::new(1)
  let n2 = Cell::new(2)
  let n3 = Cell::new(3)
  let t1 = Thunk::new(fn() {
    n1.get() + n2.get()
  })
  let t2 = Thunk::new(fn() {
    cnt += 1
    t1.get() + n3.get()
  })
  // get the value of t2
  inspect(t2.get(), content="6")
  inspect(cnt, content="1")
  // swap value of n1 and n2
  n1.set(2)
  n2.set(1)
  inspect(t2.get(), content="6")
  // t2 does not recompute
  inspect(cnt, content="1")
}

In this article, we will show how to implement an incremental computation library in MoonBit with the api used in the above example:

Cell::new
Cell::get
Cell::set
Thunk::new
Thunk::get

Problem Analysis and Solution​

To implement the library, there are three main problems to solve:

Build up dependency graph on the fly​

As a library in MoonBit, we don't have any easy ways to build up the dependency graph statically, since MoonBit does not have any meta programming mechanism currently. Therefore, we need to construct dependency graph on the fly. Since all we care about is what cells/thunks does a thunk depend on, a good option to build up dependency graph would be when user calls Thunk::get. Take the code above as an example:

let n1 = Cell::new(1)
let n2 = Cell::new(2)
let n3 = Cell::new(3)
let t1 = Thunk::new(fn() { n1.get() + n2.get() })
let t2 = Thunk::new(fn() { t1.get() + n3.get() })
t2.get()

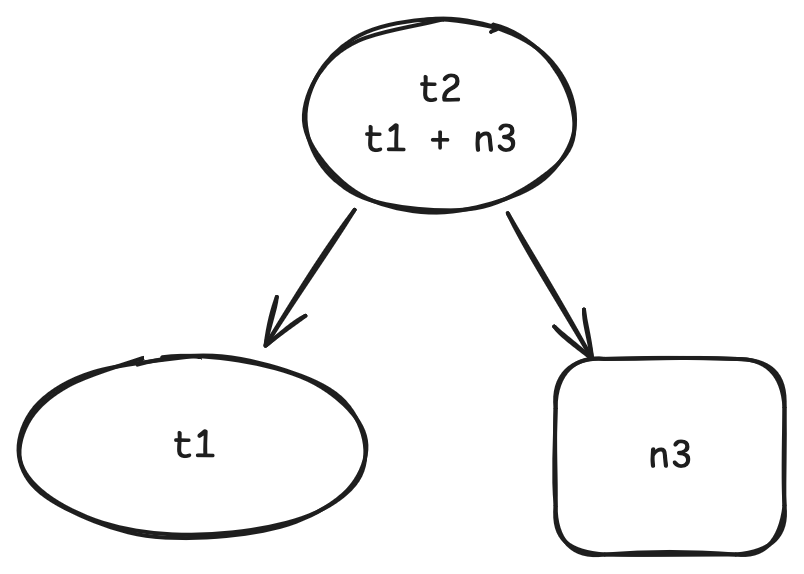

When user calls t2.get(), we can know that at runtime t1.get() and n3.get() are called inside it. Therefore, t1 and n3 are dependencies of t2 and we can construct a subgraph:

The same story will also happen when t1.get() is called inside t2.get().

So here is the plan:

  1. we declare a stack to record which thunk are we currently getting. The reason we use stack here is that we are essentially record call stacks of every get.
  2. whenever we call get, mark it as the dependency of stack top. If it's a thunk, push it onto stack.
  3. whenever a thunk's get finished, pop it off the stack.

Let's see the full process of above example under this algorithm:

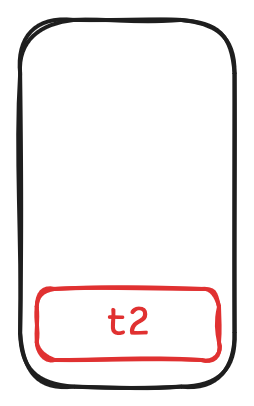

  1. when we call t2.get, push t2 on the stack.

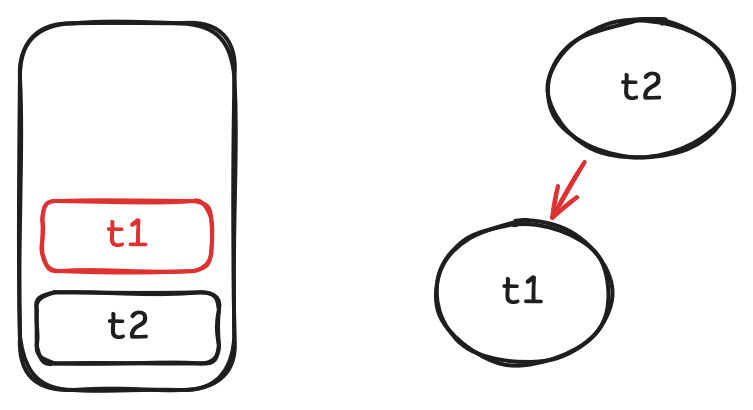

  2. when we call t1.get inside t2.get, mark t1 as a dependency of t2 and push t1 onto the stack.

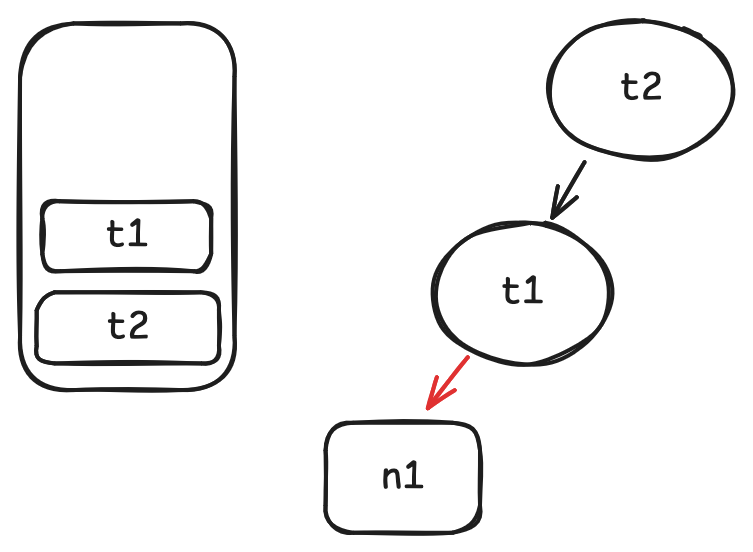

  3. when we call n1.get inside t1.get, mark n1 as a dependency of t1.

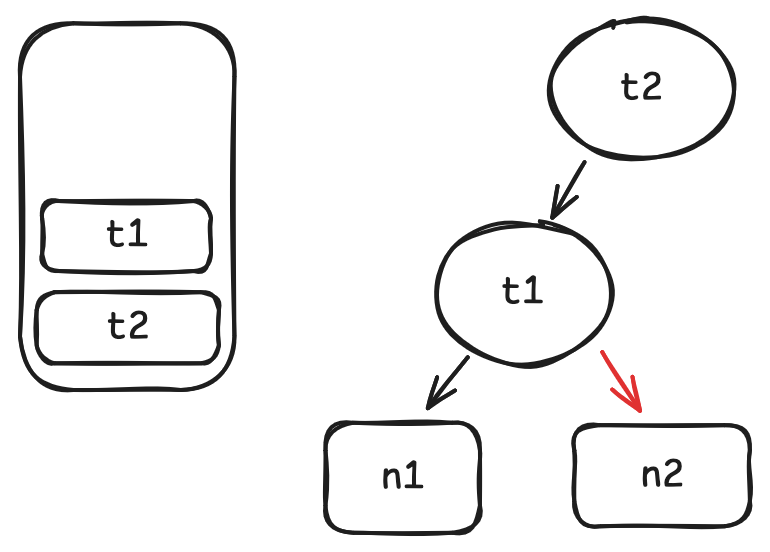

  4. same story goes for n2.

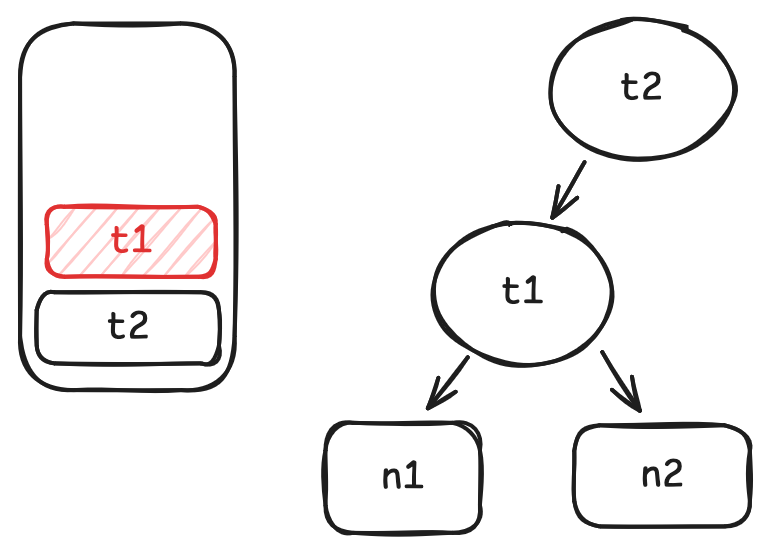

  5. when t1.get finished, pop it from stack.

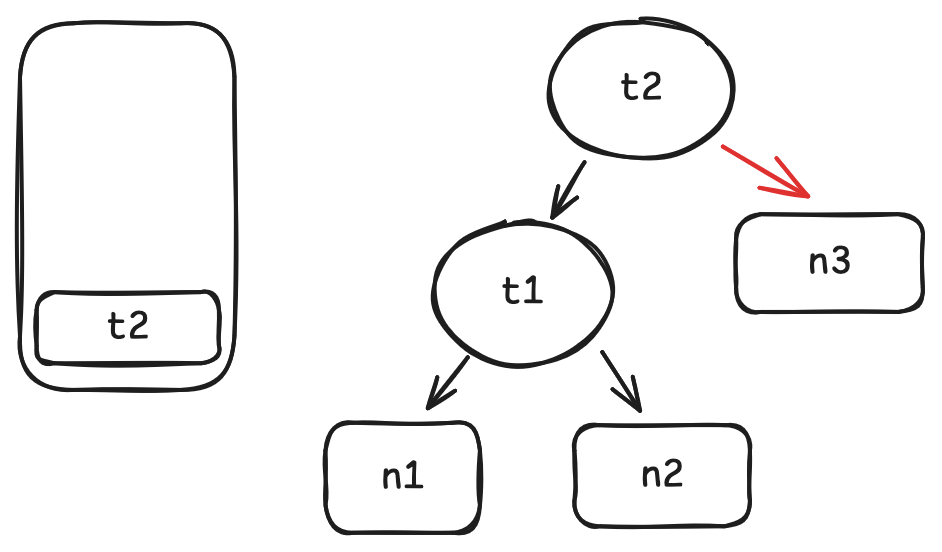

  6. when we call n3.get, mark n3 as a dependency of t2

Besides the edge from dependent to dependency, we'd better also record an edge from dependency to dependent, so that we can easily traverse the graph backwards when we need.

In the code below, we'll use outgoing_edges to refer to edge from parent(dependent) to child (dependency) and incoming_edges to refer to the opposite.

A mechanism to mark outdated node​

Whenever we call Cell::set, the node itself and all nodes depend on it should be marked as outdated. This will be one of the criteria to determine whether a thunk needs to be recomputed. This is generally a recursive backward traverse from a leaf of a graph. We can describe the process as pseudo MoonBit code:

fn dirty(node: Node) -> Unit {
  for n in node.incoming_edges {
    n.set_dirty(true)
    dirty(node)
  }
}

Determine whether a thunk needs to be recomputed​

Whenever we call Thunk::get, we need to determine whether it really needs to be recomputed. But the dirty mechanism we describe in the last subsection is not enough. If we only use dirtiness to determine whether a thunk needs to be recomputed, there would be unneeded computation. Let's see it from the example we give at the beginning:

n1.set(2)
n2.set(1)
inspect(t2.get(), content="6")

After we swap the value of n1 and n2, n1, n2, t1, and t2 should all be marked as dirty, but when we call t2.get, there is no need to recompute t2, since the value of t1 does not change.

This reminds us that despite dirtiness, we need also to record whether a node's value differs from its last value. If a node is both dirty and one of its dependencies' value changed, it needs to be recomputed.

We can describe the algorithm as the pseudo MoonBit code below:

fn propagate(self: Node) -> Unit {
  // When a node is dirty, it might need to be recomputed
  if self.is_dirty() {
    // after recomputing, it's no longer dirty
    self.set_dirty(false)
    for dependency in self.outgoing_edges() {
      // recursively recompute every dependency
      dependency.propagate()
      // If a dependency's value changed, the node needs to be recomputed
      if dependency.is_changed() {
        // remove all incoming_edges and outgoing_edges, since they will be reconstructed during evaluate
        self.incoming_edges().clear()
        self.outgoing_edges().clear()
        self.evaluate()
        return
      }
    }
  }
}

Implementation​

Given the algorithms described in the last section, the implementation should be quite straightforward.

First, let's define Cell:

struct Cell[A] {
  mut is_dirty : Bool
  mut value : A
  mut is_changed : Bool
  incoming_edges : Array[&Node]
}

Since Cell can only be leaf node in dependency graph, it does not have outgoing_edges. The trait Node here is used to abstract node in dependency graph.

Then, let's define Thunk:

struct Thunk[A] {
  mut is_dirty : Bool
  mut value : A?
  mut is_changed : Bool
  thunk : () -> A
  incoming_edges : Array[&Node]
  outgoing_edges : Array[&Node]
}

Thunk's value is optional, since it only exists after we first call Thunk::get.

We can easily add new for both types:

fn[A : Eq] Cell::new(value : A) -> Cell[A] {
  Cell::{
    is_changed: false,
    value,
    incoming_edges: [],
    is_dirty: false,
  }
}
fn[A : Eq] Thunk::new(thunk : () -> A) -> Thunk[A] {
  Thunk::{
    value: None,
    is_changed: false,
    thunk,
    incoming_edges: [],
    outgoing_edges: [],
    is_dirty: false,
  }
}

Thunk and Cell are the two kinds of node in dependency graph, we can use the trait Node mentioned above to abstract them:

trait Node {
  is_dirty(Self) -> Bool
  set_dirty(Self, Bool) -> Unit
  incoming_edges(Self) -> Array[&Node]
  outgoing_edges(Self) -> Array[&Node]
  is_changed(Self) -> Bool
  evaluate(Self) -> Unit
}

And implement the trait for both types:

impl[A] Node for Cell[A] with incoming_edges(self) {
  self.incoming_edges
}

impl[A] Node for Cell[A] with outgoing_edges(_self) {
  []
}

impl[A] Node for Cell[A] with is_dirty(self) {
  self.is_dirty
}

impl[A] Node for Cell[A] with set_dirty(self, new_dirty) {
  self.is_dirty = new_dirty
}

impl[A] Node for Cell[A] with is_changed(self) {
  self.is_changed
}

impl[A] Node for Cell[A] with evaluate(_self) {
  ()
}

impl[A : Eq] Node for Thunk[A] with is_changed(self) {
  self.is_changed
}

impl[A : Eq] Node for Thunk[A] with outgoing_edges(self) {
  self.outgoing_edges
}

impl[A : Eq] Node for Thunk[A] with incoming_edges(self) {
  self.incoming_edges
}

impl[A : Eq] Node for Thunk[A] with is_dirty(self) {
  self.is_dirty
}

impl[A : Eq] Node for Thunk[A] with set_dirty(self, new_dirty) {
  self.is_dirty = new_dirty
}

impl[A : Eq] Node for Thunk[A] with evaluate(self) {
  // push self into node_stack top
  // now self is active target
  node_stack.push(self)
  // `self.thunk` might contains `source.get()`,
  // such as `s1.get()`, `s2.get()` and `s3.get()`
  //
  // when call `Thunk::get` or `Cell::get`,
  // they will treat `node_stack.last()` as themself's target.
  // if source is `Cell`, then it only record `incoming_edges`.
  // if source is `Thunk`, then it record `incoming_edges` and `outgoing_edges`, connect each other.
  //
  let value = (self.thunk)()
  self.is_changed = match self.value {
    None => true
    Some(v) => v != value
  }
  self.value = Some(value)
  // pop self from node_stack
  // now self is no longer active target
  node_stack.unsafe_pop() |> ignore
}

The only complicated implementation is Thunk's evaluate. Here we need first to push the thunk on stack for dependency recording. node_stack is defined as below:

let node_stack : Array[&Node] = []

Then do the real computation and compare it with the last value to update self.is_changed. is_changed is used later to determine whether we need to recompute a thunk.

dirty and propagate are almost the same as the pseudo code described above:

fn &Node::dirty(self : &Node) -> Unit {
  for dependent in self.incoming_edges() {
    if not(dependent.is_dirty()) {
      dependent.set_dirty(true)
      dependent.dirty()
    }
  }
}
fn &Node::propagate(self : &Node) -> Unit {
  if self.is_dirty() {
    self.set_dirty(false)
    for dependency in self.outgoing_edges() {
      dependency.propagate()
      if dependency.is_changed() {
        self.incoming_edges().clear()
        self.outgoing_edges().clear()
        self.evaluate()
        return
      }
    }
  }
}

With all the foundation we build, the three main api: Cell::get, Cell:set, and Thunk::get are easy to implement.

To get value from a cell, it's simply just return the value filed in struct. But before that, we need first record it as a dependency if it's called inside Thunk::get.

fn[A] Cell::get(self : Cell[A]) -> A {
  if node_stack.last() is Some(target) {
    target.outgoing_edges().push(self)
    self.incoming_edges.push(target)
  }
  self.value
}

Whenever we set a cell, we need to first make sure that the two states is_changed and dirty are updated correctly. Then mark every dependent as dirty.

fn[A : Eq] Cell::set(self : Cell[A], new_value : A) -> Unit {
  if self.value != new_value {
    self.is_changed = true
    self.value = new_value
    self.set_dirty(true)
    &Node::dirty(self)
  }
}

In Thunk::get, similar to Cell::get, we first need to record self as a dependency. After that we pattern match on self.value. If it's None, it means that this is the first time user tries to get the thunk's value, so we can safely just evaluate it. If it's Some, we use propagate to make sure that we only recompute thunks that's really needed.

fn[A : Eq] Thunk::get(self : Thunk[A]) -> A {
  if node_stack.last() is Some(target) {
    target.outgoing_edges().push(self)
    self.incoming_edges.push(target)
  }
  match self.value {
    None => self.evaluate()
    Some(_) => &Node::propagate(self)
  }
  self.value.unwrap()
}
