20251103 MoonBit Monthly Update Vol.05

Β· 7 min read

Version v0.6.30+07d9d2445​

Compiler Updates​

1. Updates of the alias system​

MoonBit has three different alias syntaxes for traits, functions, and types respectively:

  • traitalias @pkg.Trait as MyTrait
  • fnalias @pkg.fn as my_fn
  • typealias @pkg.Type as MyType

This distinction introduces unnecessary complexity and limitations. For example, we couldn't create aliases for const values. In upcoming versions, we will introduce a new using syntax to unify alias creation.

The using { ... } syntax unifies traitalias, fnalias, and simple typealias, with the following specific syntax:

using @pkg {
  value,
  CONST,
  type Type,
  trait Trait,
}

This syntax creates aliases with the same name, allowing you to directly use value, CONST, Type, Trait in the current package to refer to the entity from @pkg.

You can add pub before using to make these aliases visible externally.

You can also use the as keyword for renaming in using statements, for example:

using @pkg {
  value as another_value
}

This creates an alias named another_value referring to @pkg.value. However, we do not encourage using as for renaming as it harms code readability, so the compiler will report a warning when as is used. We will remove this syntax in the future, and it's currently retained to allow migration from fnalias to using.

In addition to using, we also add support for the #alias attribute on types and traits. Therefore, all top-level definitions can now use #alias to create aliases.

The simple typealias mentioned earlier refers to cases where only a type alias is created, such as typealias @pkg.Type as MyType. For more complex type aliases that cannot be created with using, we introduce the type AliasType = ... syntax, for example:

type Handler = (Request, Context) -> Response
type Fun[A, R] = (A) -> R

Overall, in the future we will completely remove traitalias, fnalias, and typealias, replacing them with using, type Alias = ..., and #alias. Specifically:

  • using is used to create aliases of another package in the current package, for example, to import definitions from other packages
  • type Alias = ... is used to create aliases for complex types
  • #alias is used to create aliases for entities in the current package, for example, for migration during naming changes

Using moon fmt can automatically complete most migrations. We will subsequently report warnings for the old typealias/traitalias/fnalias syntax and eventually remove them.

2. Duplicate test name checking. The compiler now reports warnings for duplicate test names.​

3. Experimental lexmatch updates​

The experimental lexmatch update supports lexmatch? expressions similar to is expressions, and case-insensitive modifier syntax (?i:...). For details, please check the proposal

if url lexmatch? (("(?i:ftp|http(s)?)" as protocol) "://", _) with longest {
  println(protocol)
}

4. Added linting checks for anti-patterns​

The compiler now includes linting checks for some anti-patterns, reporting warnings during compilation. Currently includes the following checks:

anti-pattern:

match (try? expr) {
  Ok(value) => <branch_ok>
  Err(err) => <branch_err>
}

Suggested modification:

try expr catch {
  err => <branch_err>
} noraise {
  value => <branch_ok>
}

anti-pattern:

"<string literal>" * n

Suggested modification:

"<string literal>".repeat(n)

5. Added ReadOnlyArray built-in type​

The compiler now includes a new ReadOnlyArray built-in type. ReadOnlyArray represents fixed-length immutable arrays, mainly used as lookup tables. When using ReadOnlyArray, if all elements are literals, it is guaranteed to be statically initialized in the C/LLVM/Wasmlinear backends. Its usage is basically the same as FixedArray, for example:

let int_pow10 : ReadOnlyArray[UInt64] = [
  1UL, 10UL, 100UL, 1000UL, 10000UL, 100000UL, 1000000UL, 10000000UL, 100000000UL,
  1000000000UL, 10000000000UL, 100000000000UL, 1000000000000UL, 10000000000000UL,
  100000000000000UL, 1000000000000000UL,
]

fn main {
  println(int_pow10[0])
}

6. Adjustments to bitstring pattern syntax​

Previously, bitstring patterns supported using u1(_) pattern to match a single bit. At the same time, MoonBit allows omitting payloads when pattern matching with constructors, for example:

fn f(x: Int?) -> Unit {
  match x {
    Some => ()
    None => ()
  }
}

This could cause confusion when using u1 - whether it's a bitstring pattern or a single identifier. To avoid confusion with regular identifiers, in the new version, we require bitstring patterns to be written in suffix form, such as u1be(_). (Bit reading order is always high-bit first, so endianness has no meaning when reading data with length not exceeding 8 bits; this is just to more explicitly indicate that the current pattern uses bitstring pattern.)

Additionally, because little-endian semantics are more complex, little-endian can only be used when the number of bits read is a multiple of 8, such as u32le(_).

Overall, the current bitstring pattern syntax is u<width>[le|be] where:

  • width range is (0..64]
  • le and be suffixes must be written explicitly; all width values support be, only width values that are multiples of 8 support le

7. #deprecated adds a new parameter skip_current_package​

Previously, when using a deprecated definition from the current package marked with #deprecated, the compiler would not report warnings. This was to prevent uneliminable warnings in tests/recursive definitions, but sometimes it's also necessary to detect usage of deprecated definitions within the current package. Therefore, #deprecated adds a new parameter skip_current_package with a default value of true, which can be overridden with #deprecated(skip_current_package=false). When skip_current_package=false, using this definition within the current package will also report warnings.

8. moon.pkg DSL plan​

We plan to design a new moon.pkg syntax to replace the original moon.pkg.json. The new DSL will improve the experience of writing import information under three premises:

  • Compatible with existing options
  • Friendly to build system performance
  • Preserve the semantics of import being "effective for the entire package"

Current moon.pkg syntax overview in the proposal (not final):

import {
  "path/to/pkg1",
  "path/to/pkg2",
  "path/to/pkg3" as @alias1,
  "path/to/pkg4" as @alias2,
}

// Blackbox test imports
import "test" {
  "path/to/pkg5",
  "path/to/pkg6" as @alias3,
}

// Whitebox test imports
import "wbtest" {
  "path/to/pkg7",
  "path/to/pkg8" as @alias4,
}

config {
  "is_main": true, // Comments allowed
  "alert_list": "+a+b-c",
  "bin_name": "name",
  "bin_target": "target",
  "implement": "virtual-package-name", // Trailing commas allowed
}

Proposal discussion and details: https://github.com/moonbitlang/moonbit-evolution/issues/18

Build System Updates​

1. Deprecate moon info --no-alias.​

In the last monthly, we added the moon info --no-alias functionality to generate pkg.generated.mbti files without default aliases:

moon info

package "username/hello2"

import(
"moonbitlang/core/buffer"
)

// Values
fn new() -> @buffer.Buffer

moon info --no-alias

package "username/hello2"

// Values
fn new() -> @moonbitlang/core/buffer.Buffer

In practice, we found this functionality had limited utility while increasing maintenance costs, so we decided to deprecate it.

2. Updated template project generated by moon new.​

We added .github/workflows/copilot-setup-steps.yml to the template project generated by moon new to help users quickly use GitHub Copilot in MoonBit projects.

IDE Updates​

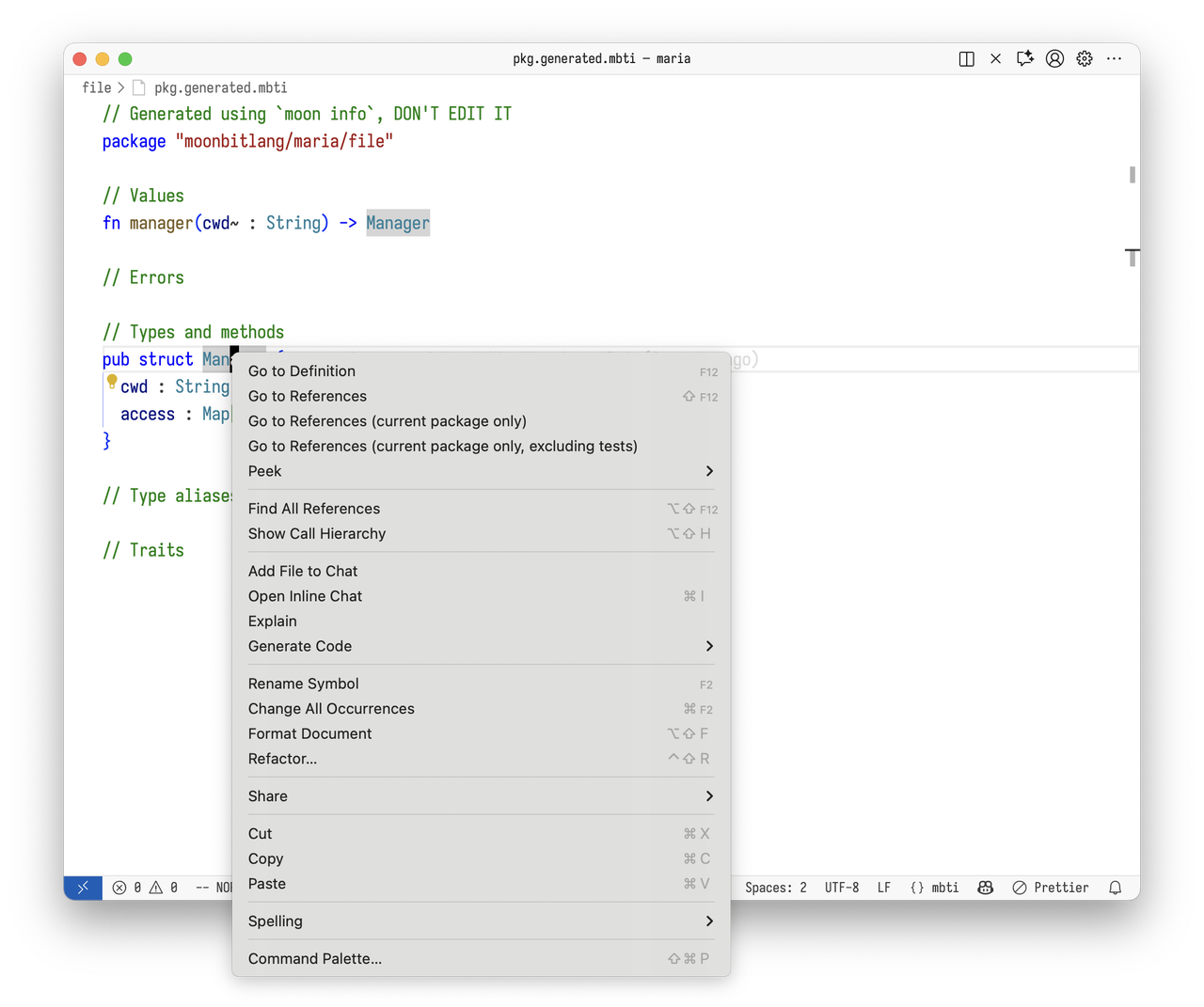

1. mbti files support find references.​

Users can find references of a definition in mbti files within the project:

alt text

As shown, we currently support three different ways to find references:

  • Go to References: Search in all reverse dependencies of the package
  • Go to References (current package only): Search only within the package, including all tests
  • Go to References (current package only, excluding tests): Search only within the package, skipping all tests

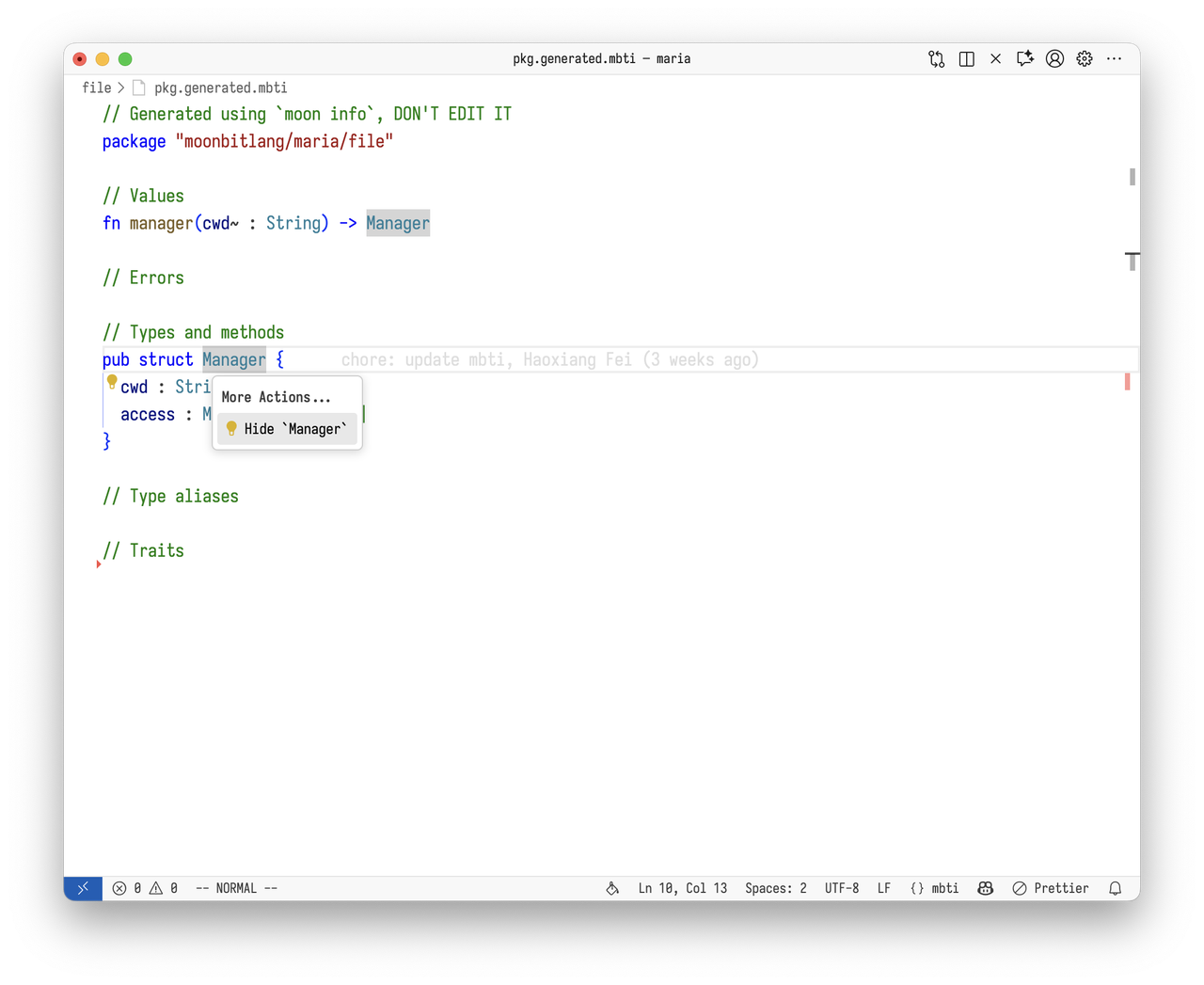

2. mbti files support Hide and Unhide code actions, facilitating API refactoring:​

alt text

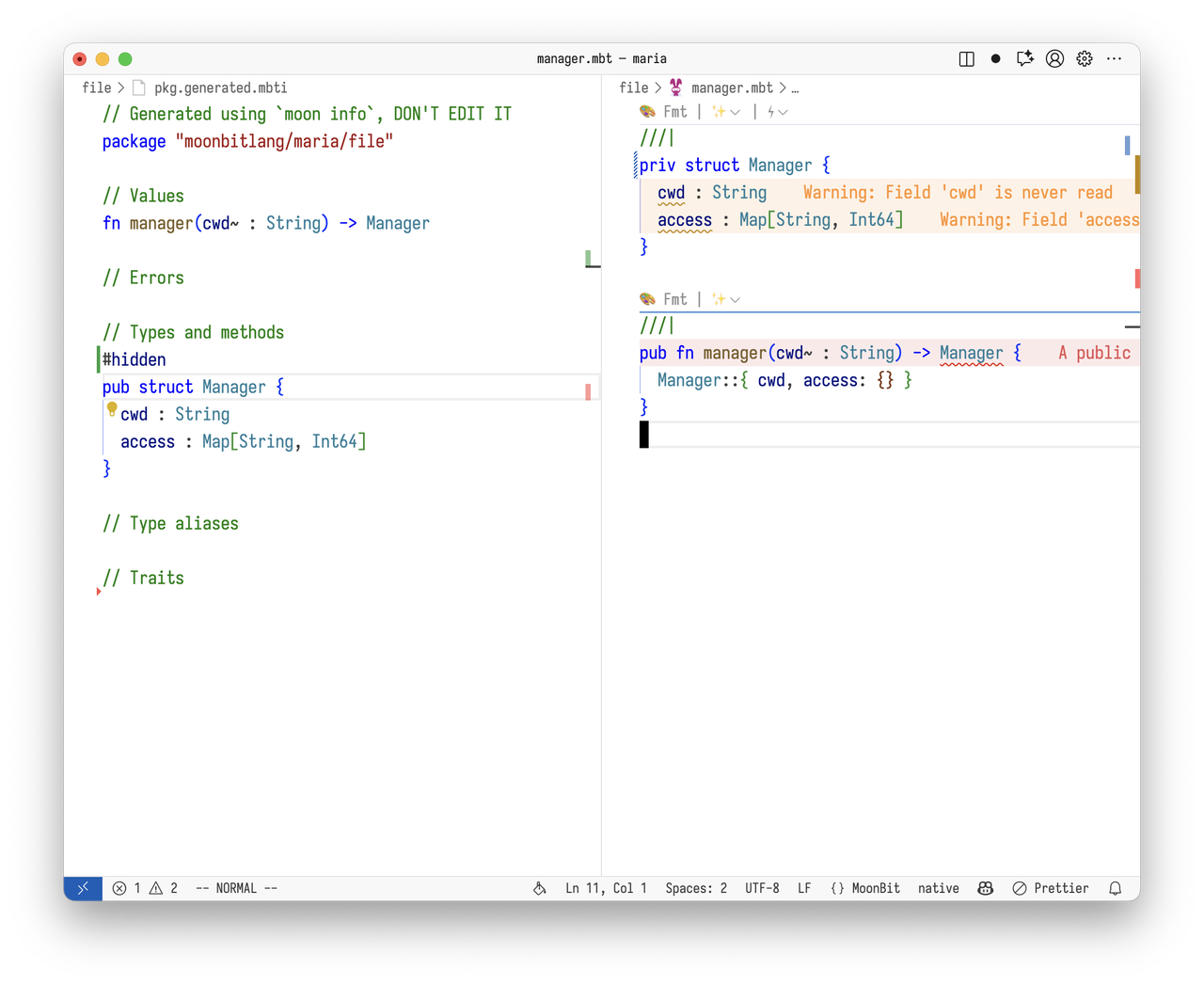

For definitions in mbti, LSP provides a Hide ... code action to make it private. After executing the above code action, Manager will become a private definition:

alt text

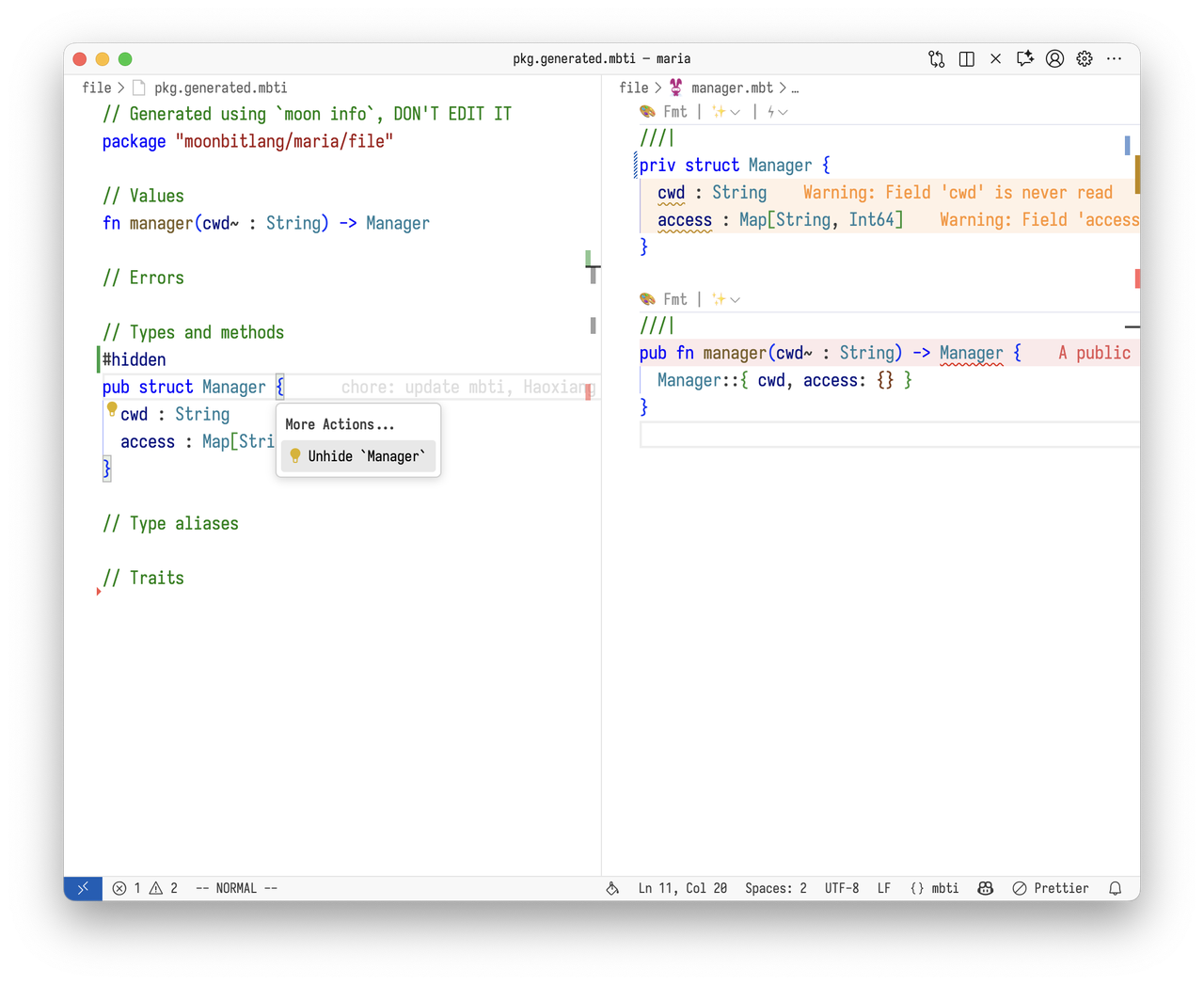

If no errors are reported after executing the code action, it means this is a redundant API that can be remove; if there are errors, users can use the Unhide ... code action to undo the previous operation:

alt text

3. Automatically format updated code blocks after test updates.​

When using update codelens in VSCode to update tests, the updated tests are automatically formatted.

4. Added more attribute snippet completions.​

Standard Library Updates​

  1. Added external iterator type Iterator. We will migrate iterators for common container types in core from internal to external. This is to enable async usage in for .. in loops and support APIs like zip that internal iterators cannot support. The for .. in loop now calls .iterator()/.iterator2() methods for iteration through external iterators. When the iterated type doesn't support external iterators, it falls back to the original internal iterator type Iter. In the future, we will migrate from internal iterators to external iterators, and eventually keep only external iterators.
